semi-auto notebook hard cover casing machine
Product Name:
semi-auto notebook hard cover casing machine
:
:
:

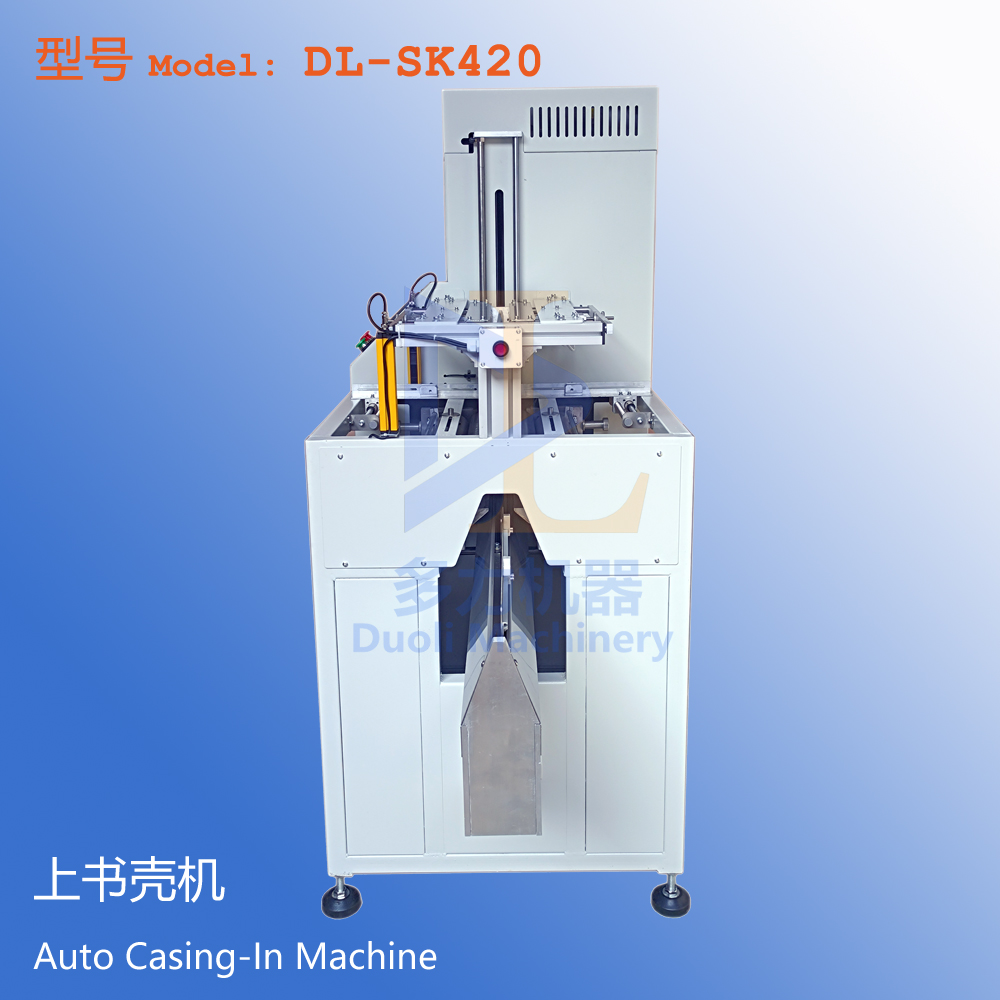

Semi-auto notebook hard cover casing machine
Model:DL-SK420

Table 1: The main technical parameters of the equipment
Max. book size 420×360mm
Min. book size 90×60mm
Book thickness 5~65mm
Gumming roller width 420mm
Power Supply 220V
Production speed about 750 books/hour
Machine Weight 250KG
Machine dimensions 1650*820*1740mm

Casing-in the book blocks and hard covers perfectly. Suitable for making multispecies and short to medium run of hard cover books and photobooks. Both side uniformly gluing, end papers pasting and casing-in automatically with high consistency and rate of finished porducts. Easy to adjust the thickness of the glue and books.
✤ According the length and thickness of the book block, adjusts the casing-in position, glue position and dwell time automatically.
✤ Running speed, mode switch (Auto/manual/inching) and water filling\cleaning.
✤ slide track and unique hard cover position mode ensure the machine stable and easy operation.
✤ The base of the machine is equipped with high load bearing footmaster casters, which is convenient to level adjusting, fixing and moving the machine.
✤Adjust the length and thickness of the book blocks, and the casing- in will be processed automatically.
✤ Casing-in the book blocks and hard covers, gluing equably and positioning accurately.
✤ autonomous control and running.
✤Control the opening and closing position of the rollers automatically.
✤The base of the machine is equipped with high load bearing footmaster casters, which is convenient to level adjusting, fixing and moving the machine.
