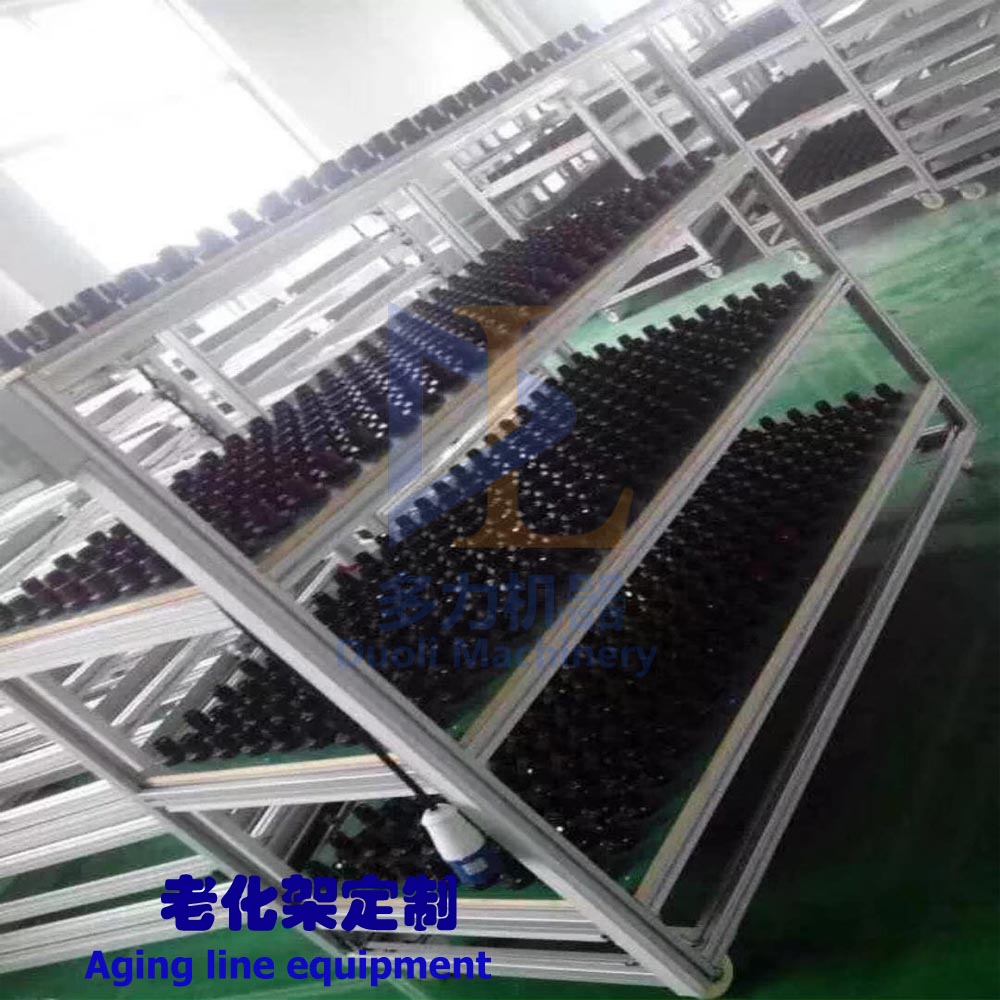

1. Dimensions of the equipment: The conventional product is 1.5 meters wide, 0.6 meters high and 1.6 meters high. The equipment is divided into 4 layers and each layer has a height of 400mm. Each layer can be equipped with about 100 E27 fast plug lamps. The specific quantity is based on customer requirements. .

2. The lamp panel of the equipment is made by punching, bending and welding S1.2 cold-rolled steel plates, and the lamp plate is sprayed and treated. Color: computer gray.

3. The equipment frame is made of 40*40 aluminum alloy profile assembly or 40*40 square pipe welding. The whole assembly is firm, and the bottom can be installed with movable casters (convenient to move) or support adjustment feet (placed stable) according to demand.

4. Each device is equipped with a total number of electric cabinets, one total gate, each layer can be configured according to the requirements of the number of air switches, the device is equipped with an explosion-proof plug.

First, the equipment project: four aging Taiwan

Second, the specification parameters: L1500 × W600 × H1600 (mm)

Third, quantity: 1

Fourth, selection and production:

Rack: The racks are made of 40×40 rectangular steel pipe welded or 40*40 aluminum alloy profiles; the bottom frame is 150mm away from the ground, the remaining three layers are each separated by 400mm, the total height is 1600mm; installation adjustment foot or universal joint With brake castor.

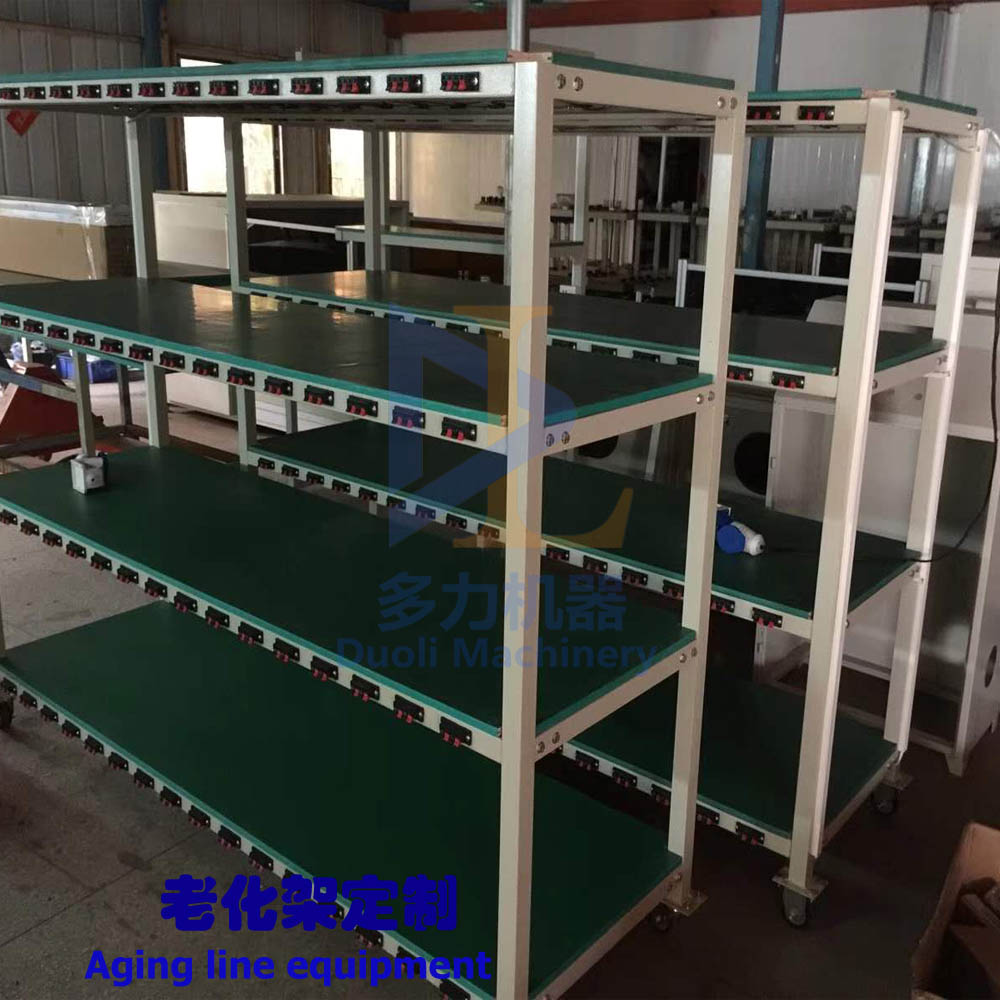

Aging table: The panel adopts 15mm high-quality plywood, with green plastic anti-static rubber around the T-type edging, each layer. Each block is equipped with 6 sets of electronic aging two wiring audio clips, each aging table can simultaneously aging 12 sets of LED Street lights; or E27 quick-swappable lamp caps can be installed on each floor, and 5.0 insulation foam plates are used at the bottom to isolate the air switches on each floor. The specific functions can be customized according to the requirements.

Electrical control: A switch box is used to install the leakage switch control and an additional 3 meters long 4m square cable plug is installed.

Body color: Computer body color spray is applied to the frame body.

The company specializes in the design, manufacture, installation, maintenance of various aging lines, LED bulb equipment, automation equipment and other LED special equipment.
