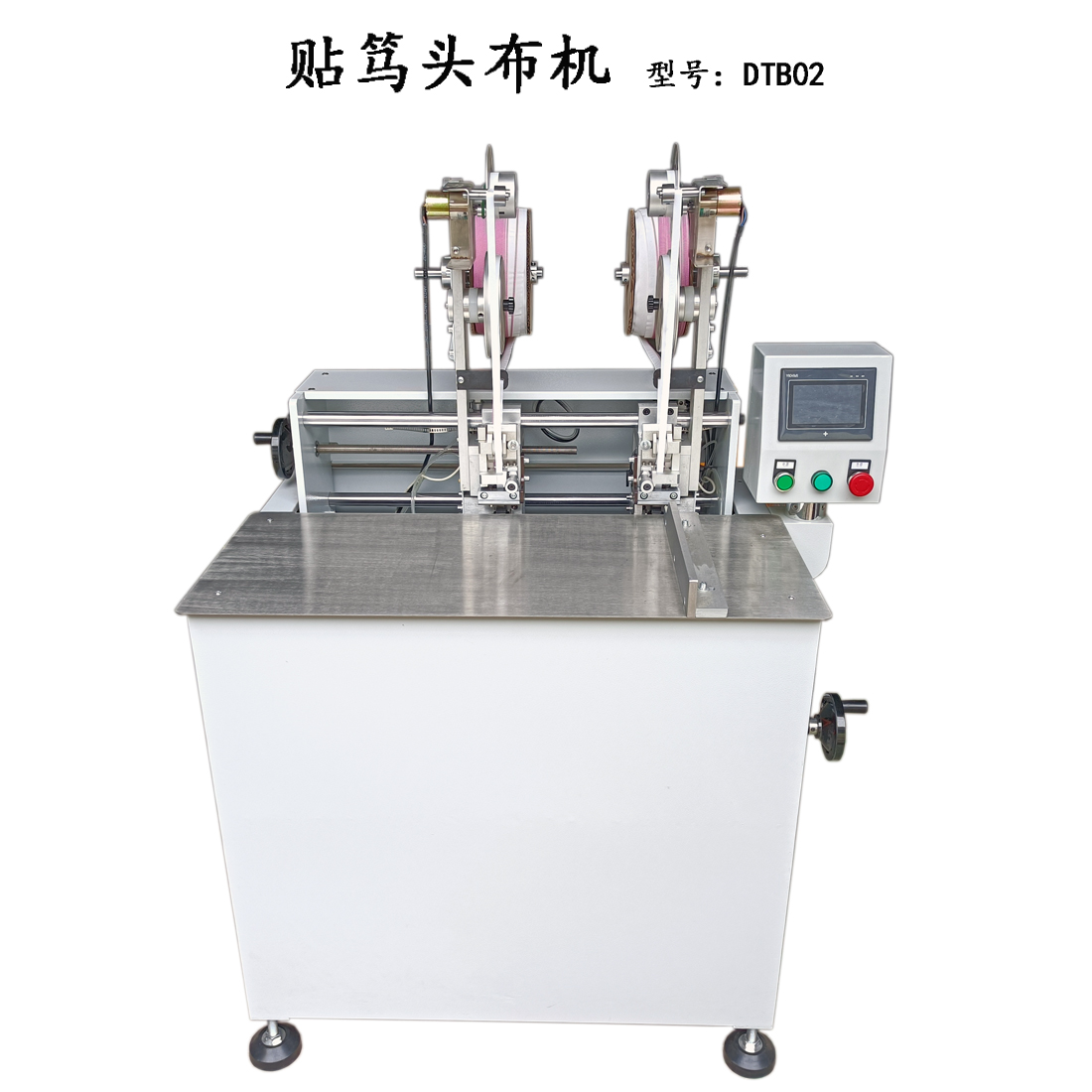

Automatic Two Heads Hardcover Book Block Head Edge Band Machine Hard-cover-book-making-machine
 |
Anyone who purchases our company's products can enjoy a free one-year warranty and lifelong technical support,
NoteBook Head Band MachineMain technical parameters
| Speed | 12books/min |
| Book size | 90~420mm |
| Book thickness | 8~60mm |
| Contral way | PLC |
| Pow | AC220V 0.8KW |
| N.W. | 110kg |
| Machine size | 950*600*1300mm |
Main function: It is a specialized device used to apply blocking cloth to the finished book block of hardcover books and notebooks. After applying the cloth head, it can protect the shape of the book block, enhance the firmness of the book and the wear resistance on both sides of the back of the book block, and play a firm and beautiful role. This machine can be easily operated by one person, and the adjustment of book size is simple. It uses compressed air as the power source to drive and control the operation of the equipment, and has the characteristics of easy maintenance and debugging.
Machine characteristics:
Compressed air drive.
PLC control system, touch screen selection function and setting adjustment.
The end caps on both sides of the spine are bonded at one time (Double-sided tape bonding is not required, and the end caps are automatically cut).
Easy to operate, automatic book block sensing, capable of producing up to 60mm book blocks.
Kind reminder:
The machine needs to be externally connected with compressed air, and the user should provide their own air compressor.
