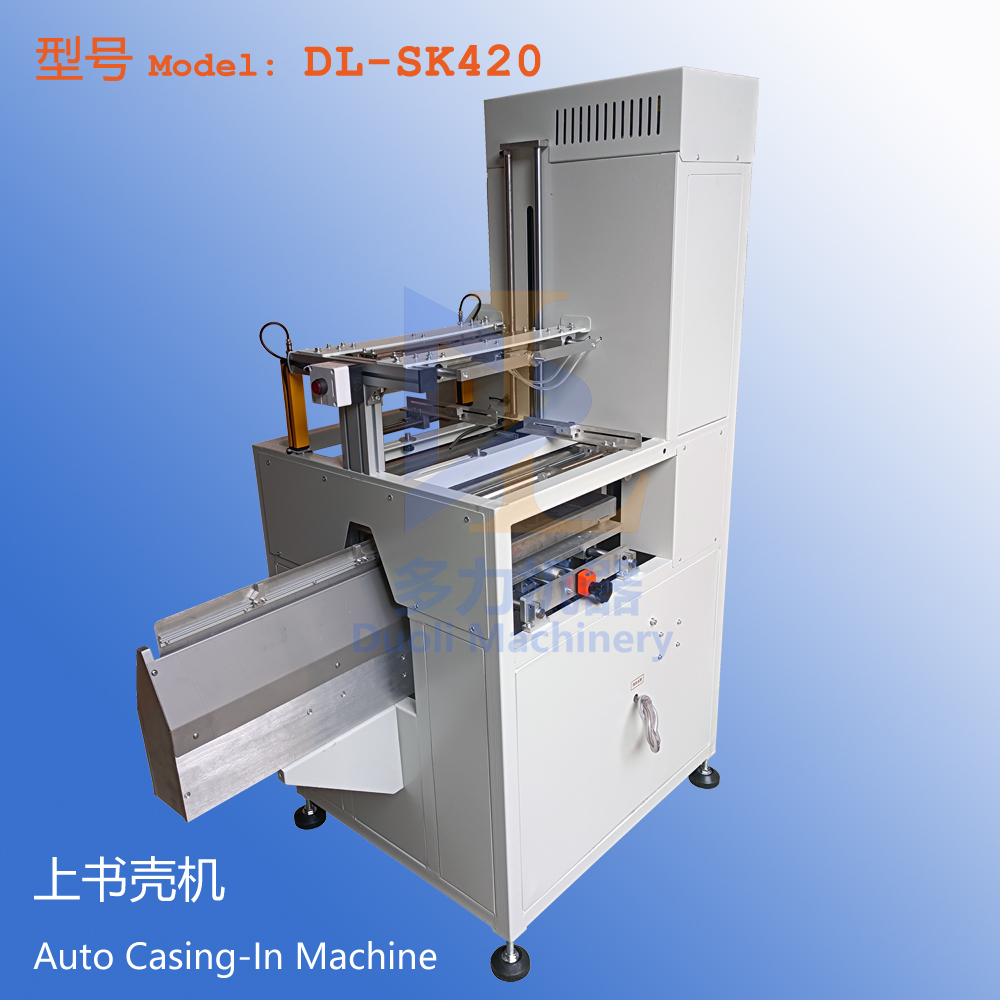

DUOLI DL-SK420 Case In And Joint Forming Book Casing-In Machine for Children Board Books
 |
DUOLI DL-SK420 Case In And Joint Forming Book Casing-In Machine for Children Board Books
Model：DL-SK420
Table 1: The main technical parameters of the equipment
Casing-in the book blocks and hard covers perfectly. Suitable for making multispecies and short to medium run of hard cover books and photobooks. Both side uniformly gluing, end papers pasting and casing-in automatically with high consistency and rate of finished porducts. Easy to adjust the thickness of the glue and books.
Model：DL-SK420
Table 1: The main technical parameters of the equipment
| Max. book size | 420×360mm |
| Min. book size | 90×60mm |
| Book thickness | 5～65mm |
| Gumming roller width | 420mm |
| Power Supply | 220V |
| Production speed | about 750 books/hour |
| Machine Weight | 250KG |
| Machine dimensions | 1650*820*1740mm |
✤ According the length and thickness of the book block, adjusts the casing-in position, glue position and dwell time automatically.
✤ Running speed, mode switch (Auto/manual/inching) and water filling\cleaning.
✤ slide track and unique hard cover position mode ensure the machine stable and easy operation.
✤ The base of the machine is equipped with high load bearing footmaster casters, which is convenient to level adjusting, fixing and moving the machine.
✤Adjust the length and thickness of the book blocks, and the casing- in will be processed automatically.
✤ Casing-in the book blocks and hard covers, gluing equably and positioning accurately.
✤ autonomous control and running.
✤Control the opening and closing position of the rollers automatically.
✤The base of the machine is equipped with high load bearing footmaster casters, which is convenient to level adjusting, fixing and moving the machine.
